MV.EYE PL1

Inspection of shape and defects of castings

MV.EYE PL1

Inspection of shape and defects of castings

MABRI.VISION builds optical inspection systems for the shape inspection of cast parts and the detection of surface pores and cavities on them. Pores and cavities on functional surfaces lead to component malfunctions. Reliable inline inspection allows these defects to be detected early. The MV.EYE PL1 inspection system is equipped with robot-guided machine vision cameras, which enable efficient and precise shape capture and reliable detection of surface defects. The inspection system can be integrated into the production line or manually loaded.
Request testing of castings

Applications

  • Inspection of castings

Inspections

  • Defects
  • shape
  • presence
  • volume

Industry sectors

  • Automotive
  • Metal processing
  • Lightweight construction

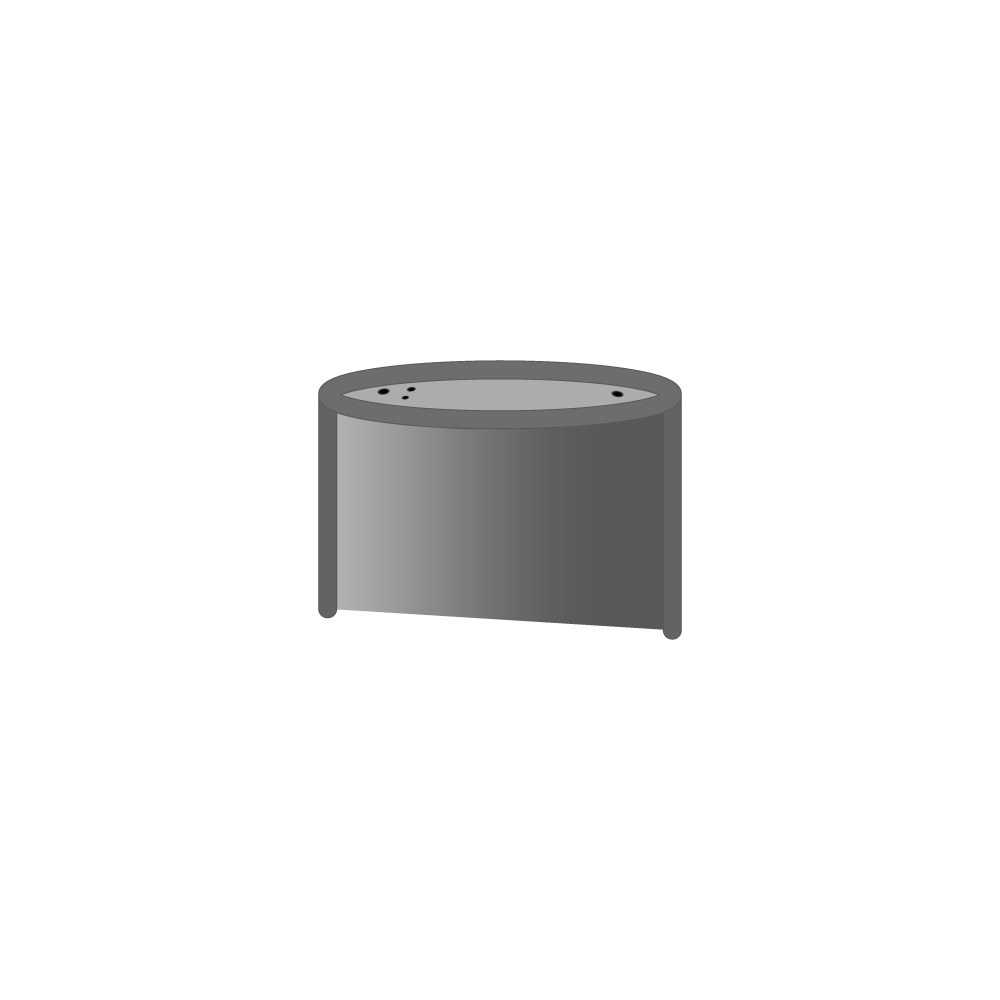

Surface pores

Surface testing on castings

The MV.EYE PL1 system enables the detection of surface pores and voids on functional surfaces that can occur during the aluminum die-casting process.

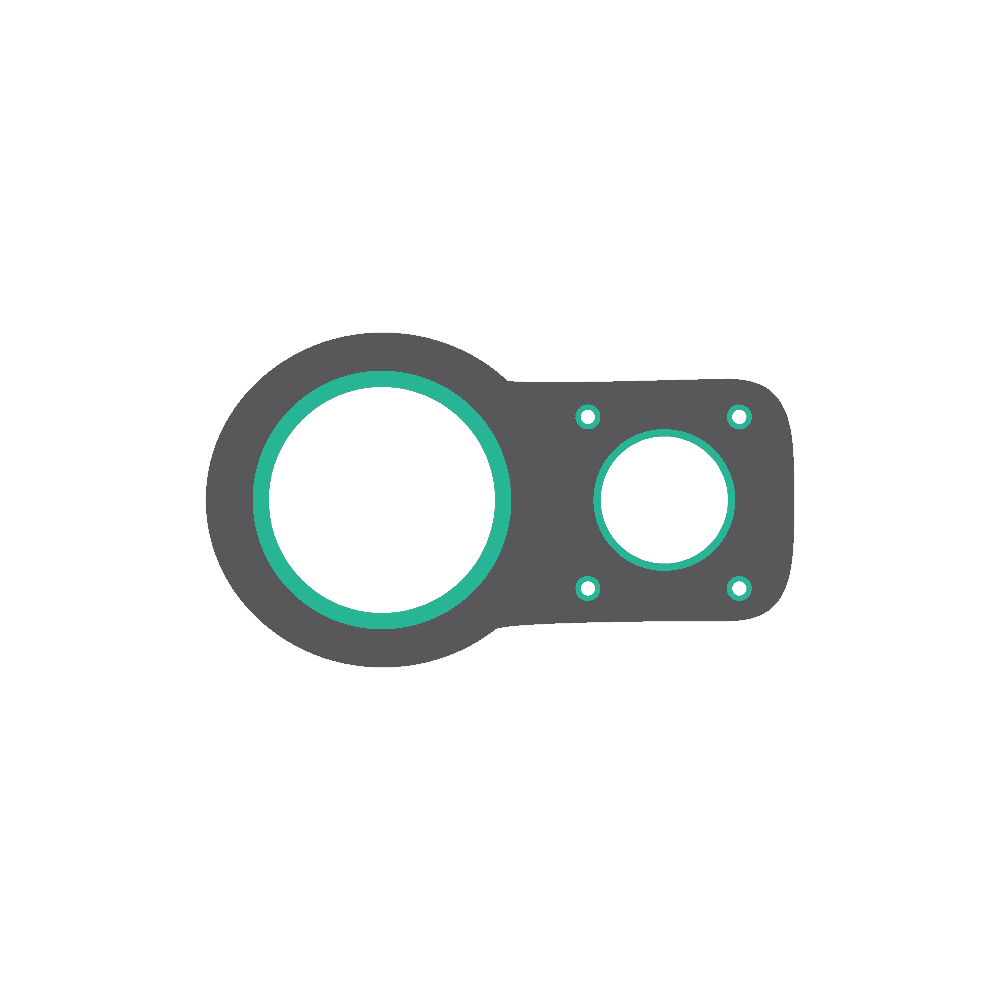

form check

Form testing of castings

Use the MABRI.VISION inspection system to fully inspect the shape of your components. Benefit from optimization through stored and analyzed data.

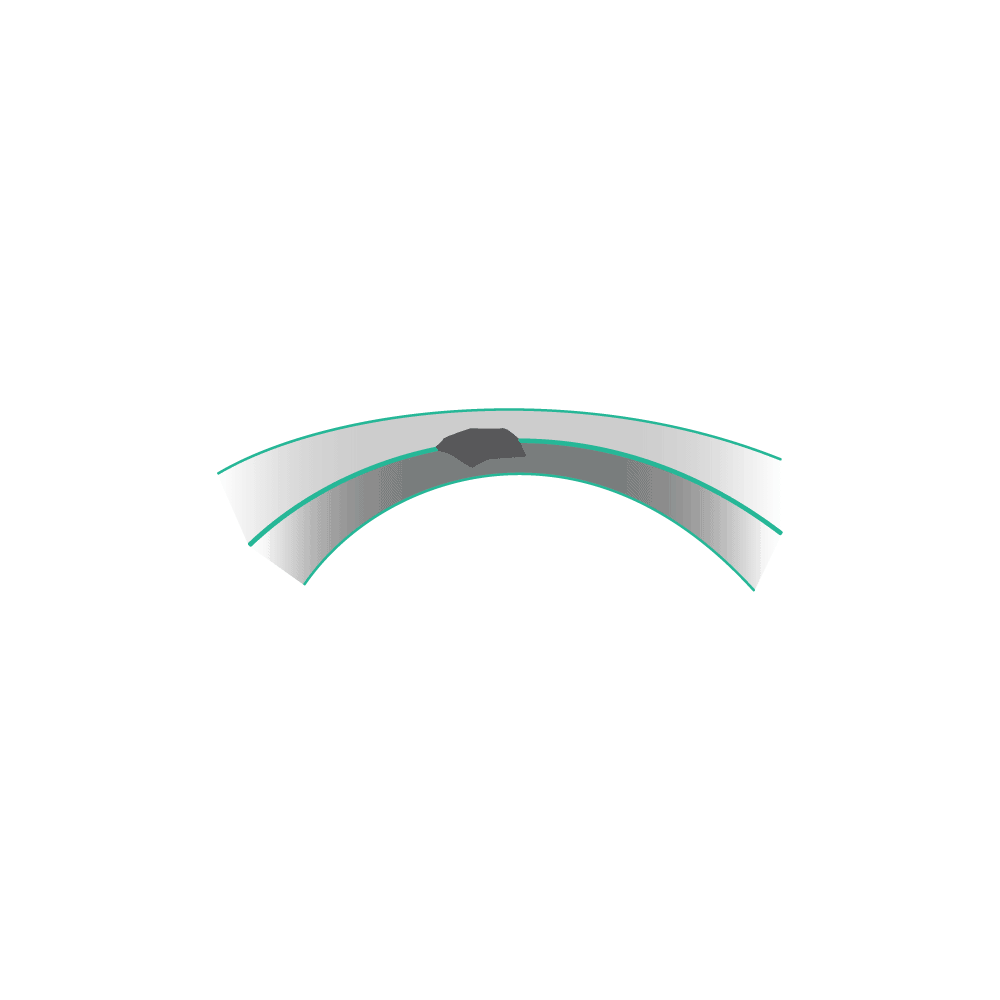

Flaws & Defects

Inspection of flaws and defects on castings

Our MV.EYE PL1 inspection system ensures quick and reliable detection of quirks, grooves, scratches and dents on functional and cast surfaces.

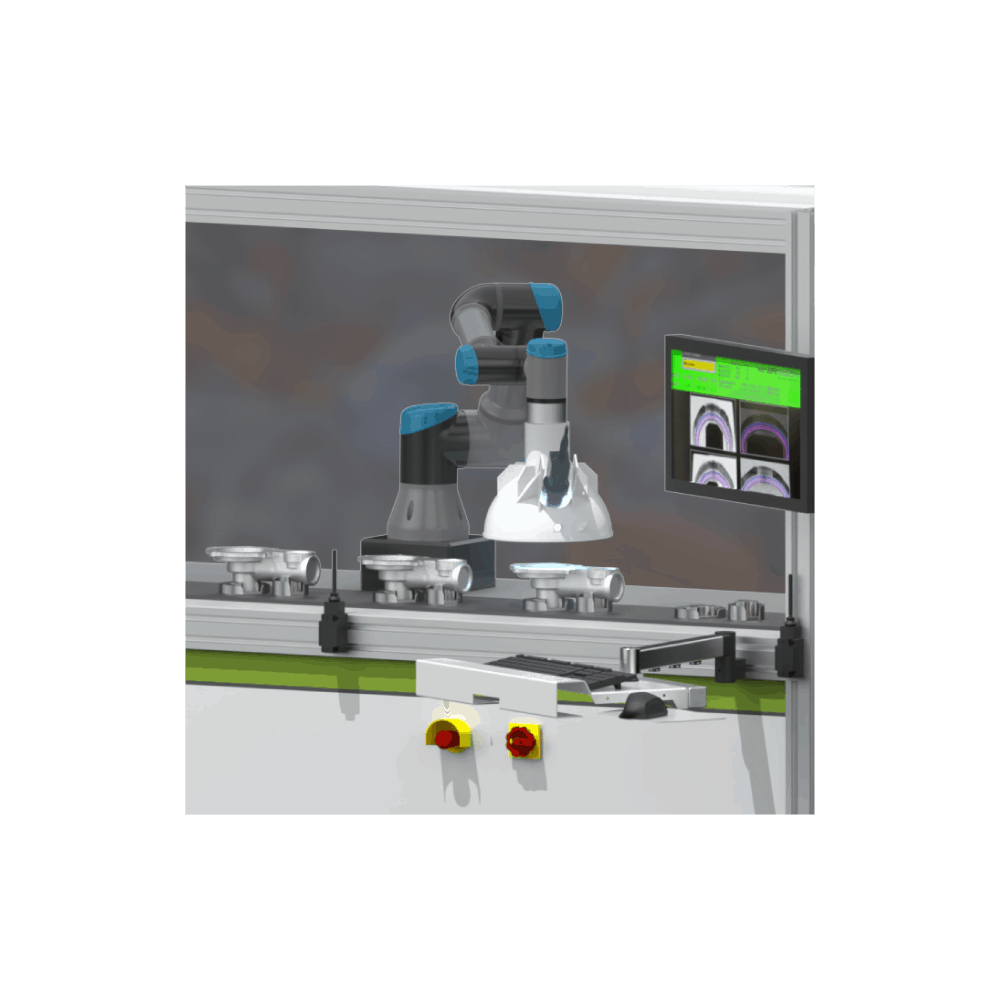

robot-guided sensors

Robot-guided sensor technology: robot gripper arm integrated into the test system, robot-guided measurement technology, sensor technology, test centers, testing, components, test part

Robot-guided sensors enable components to be inspected from different perspectives. The use of gripper arms enables damaged components to be sorted out immediately.

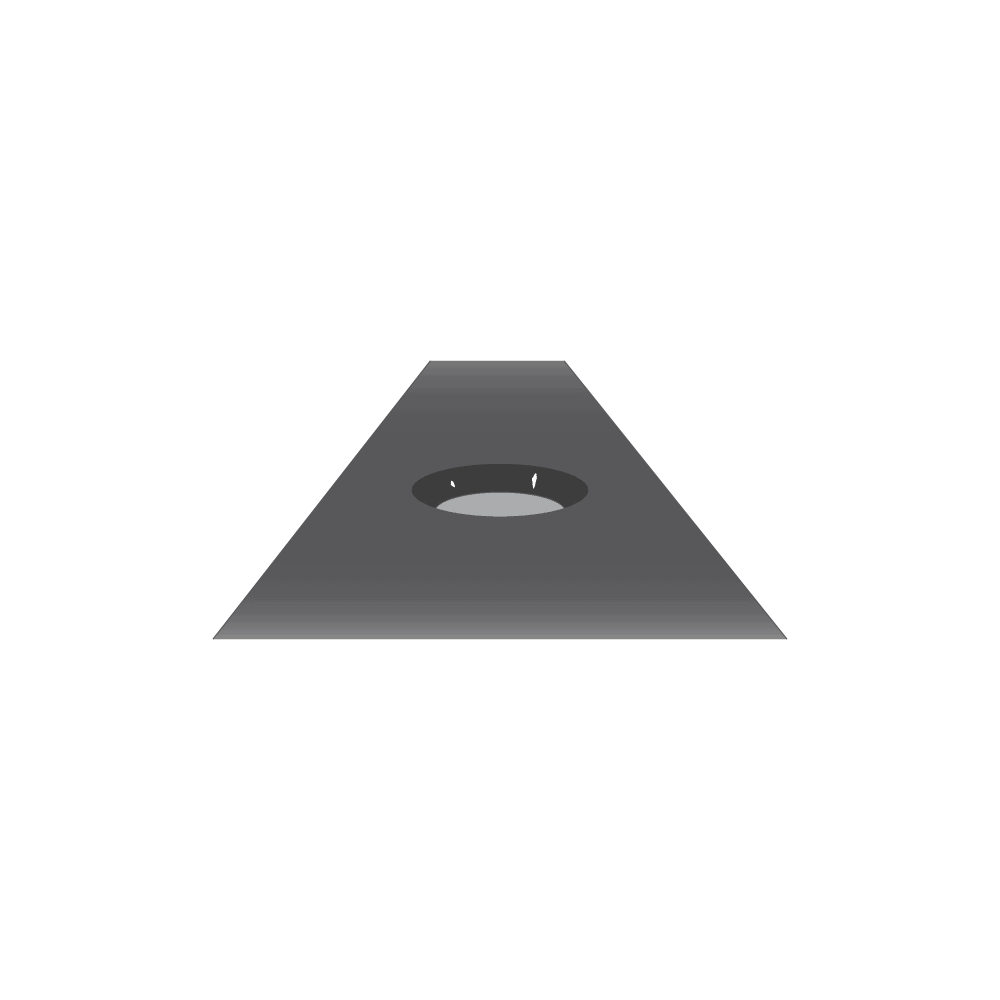

hard-to-reach areas

Thanks to the use of special optics, even hard-to-reach areas can be checked with the MV.EYE PL1 testing system. Internal surface pores are recorded in 360°.

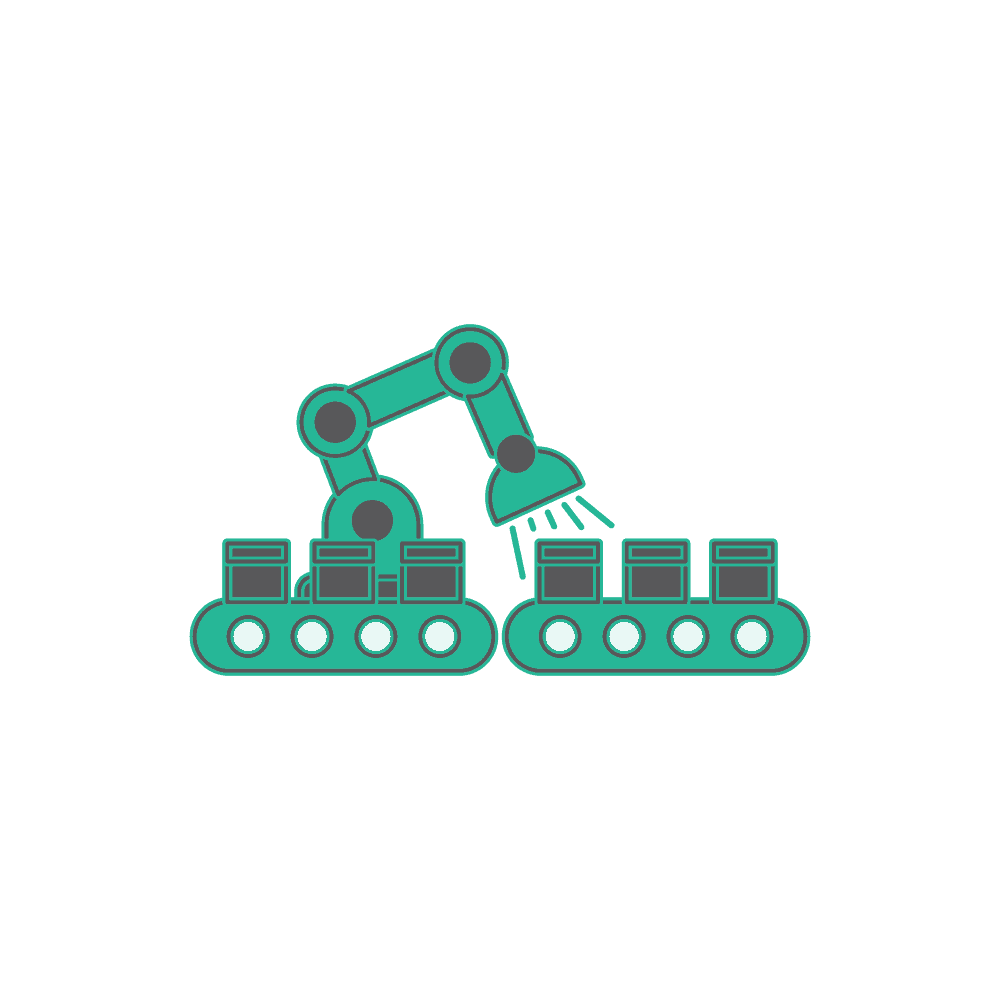

Process integration

The testing of the relevant features takes place during the production cycle and can therefore be smoothly integrated into your production line. Our MV.EYE PL1 system offers all common industrial interfaces.

Specifications

Universal: versatile

Metal processing

The MABRI.VISION testing system is ideal for testing castings at high speed and for detecting surface pores, flaws and defects.

Lightweight construction

Benefit from inline-capable testing of shapes, tolerances and defects in lightweight construction. Even areas that are difficult to access are recorded in the shortest possible time and with high precision.

automobile

The MV.EYE PL1 testing system is used in the automotive industry due to its fast measuring cycle and smooth integration into automated production processes.

information material

MV.EYE PL1 pore test

Download
